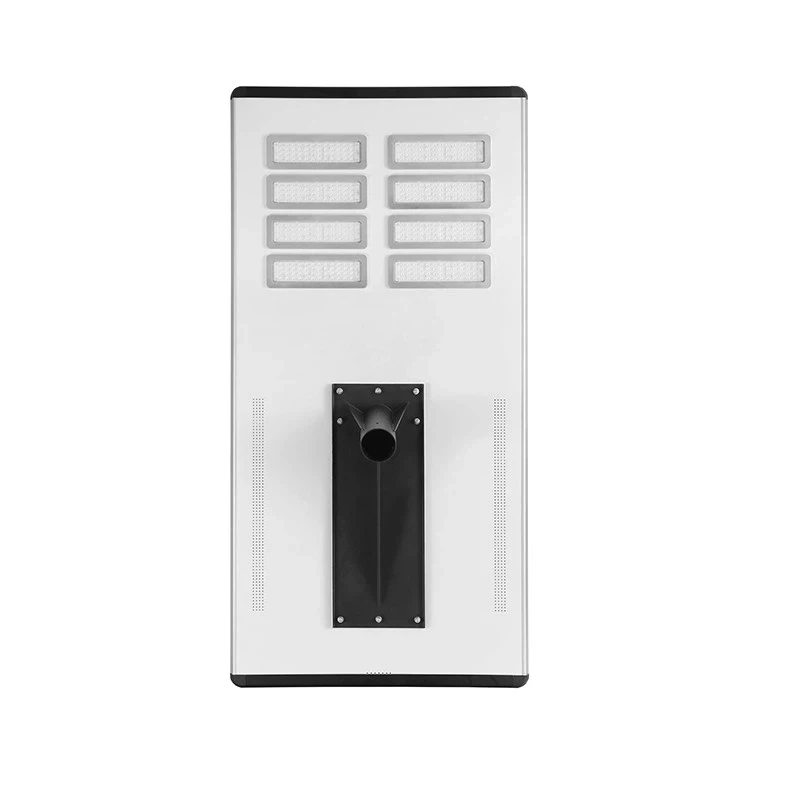

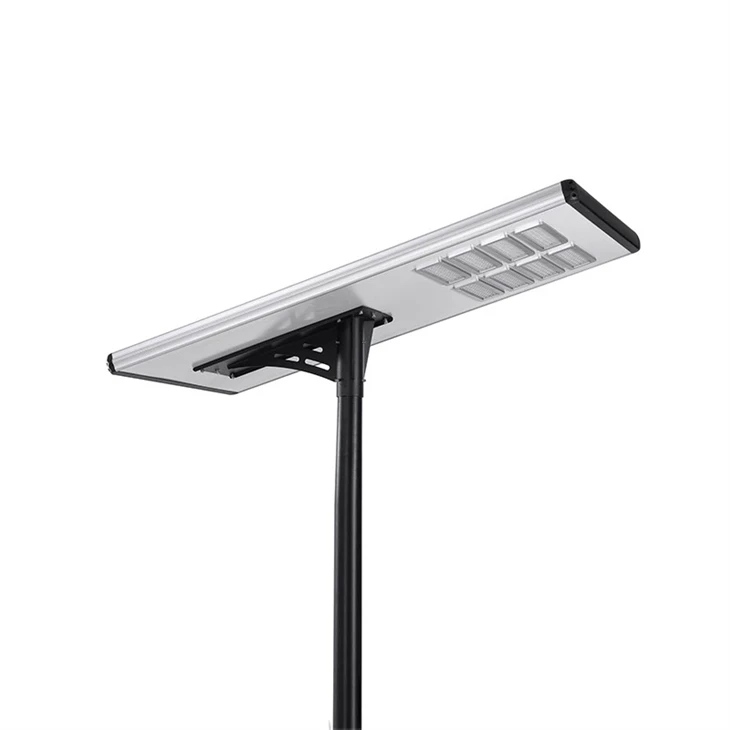

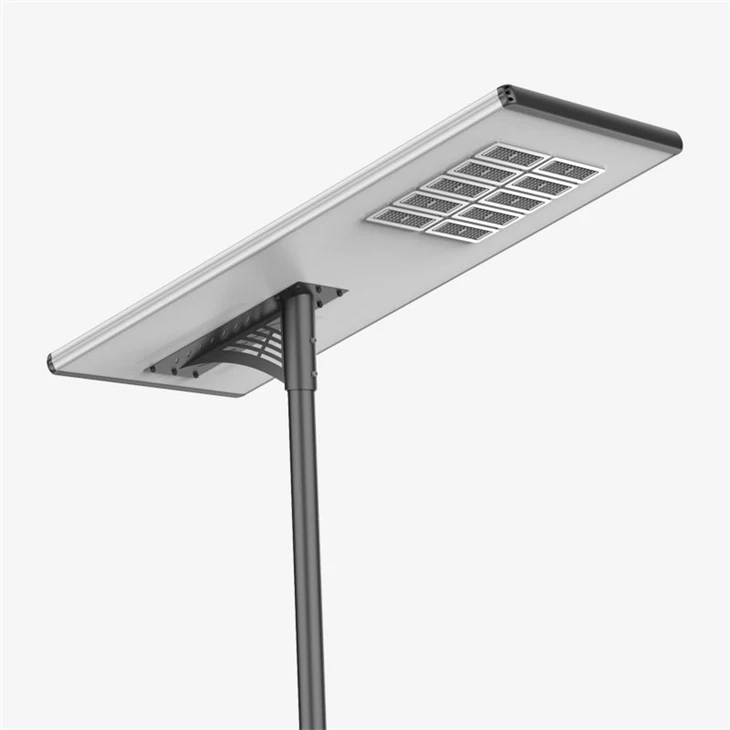

1. Integrated System Design
The 150w solar led street light system is highly integrated, incorporating solar panels, LED light sources, lithium-ion batteries, and a dual-MPPT smart controller. There is no need to dig cable trenches, lay utility lines, or install electrical distribution boxes on-site. Installation can be completed in a single step by simply mounting the unit onto a single pole, greatly reducing the need for civil engineering materials and labor and significantly lowering construction costs and project completion timelines for contractors.
2. Modular Maintenance Design of the Controller
The 150w solar led street light controller components can be individually disassembled and removed, eliminating the need to dismantle the entire luminaire for subsequent troubleshooting, programming, and component maintenance. This enables greater maintenance efficiency for local European maintenance teams and reduces long-term labor costs for operation and maintenance.
3. All Series Models Feature a Unified Structural System
The 150w solar led street light includes four power ratings-40W, 60W, 80W, 100W and 150W-each corresponding to different length and width specifications. The 150W model has a length of 1,408 millimeters and is suitable for installation on 8M to 12-meter light poles. Higher-wattage models require taller light poles. The selection can be flexibly adjusted based on road classification, and this systematic matching makes the series easier to apply to both main thoroughfares and side streets.
4. Universal Mounting Brackets for Multiple Sizes
Three mounting hole sizes are provided as standard: Φ60 mm, Φ64 mm, and Φ80 mm. The mounting interface features an adaptive design, and the lamp head supports 180° pitch adjustment. This design is compatible with the vast majority of galvanized streetlight poles on the European market, accommodating retrofit requirements for existing poles in various engineering projects. It also allows for precise adjustment of the solar panel's orientation angle to maximize solar radiation capture and improve charging efficiency in low-light environments.
Production workshop
Solar Street Light Projects
