Product Introduction
The 20m/30m high mast flood light is a high-brightness fixture designed for large-area outdoor lighting, suitable for scenarios such as stadiums, airports, ports, plazas, and large construction sites.
Pole Height Structures: 15 m–45 m
High-Mast LED Flood Light Range: 200 W–2000 W
| Steel Material | Commonly:Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 | ||||
| Height | 15M | 20M | 25M | 30M | 40M |
| Diameter (d/D) | 120mm/ 280mm | 220mm/ 460mm | 240mm/ 520mm | 300mm/ 600mm | 300mm/ 700mm |
| Thickness | 5mm+6mm | 6mm+8mm | 6mm+8mm+10mm | 8mm+8mm+10mm | 6mm+8mm+10mm+12mm |
| LED Power | 200W | 500W | 800W | 1000W | 1200W |
| Color | White,Gray,Silver,also can be Customized | ||||
| Surface treatment | Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II | ||||
| Shape Type | Conical pole, Octagonal pole | ||||
| Stiffener | With big size to strength the pole to resist the wind,wind against level>160KM/H | ||||
| Powder coating | Thickness of powder coating>100um. | ||||
| Pure polyester plastic powder coating has stable performance, strong adhesion and strong UV resistance. | |||||
| The film thickness is more than 100um and the adhesion is strong. Even if it is scratched with a blade (15×6mm square), the surface will not peel off. | |||||
| Wind Resistance | According to local climate conditions, the general design wind resistance is ≥150KM/H | ||||
| Welding Standard | No cracks, no leaks, no undercuts, smooth welds without bumps or any other welding defects. | ||||
| Hot-Dip Galvanized | Thickness of hot-galvanized>80um. | ||||
| Hot-dip galvanizing The inner and outer surfaces are treated with hot-dip acid anti-corrosion treatment in accordance with BS EN ISO1461 or GB/T13912-92 standards. The design service life of the lamp pole is greater than 25 years. The galvanized surface is smooth and uniform in color. No flaking was observed after the impact test. | |||||
| Lifting device | Ladder climbing or electric | ||||
| Anchor bolts | Hot dip galvanized or Common Anchor Bolt,Optional | ||||
| Material | Aluminium,SS304 is available | ||||
| Passivation | Available | ||||
Product Features
Durable
The pole is constructed of Q345B hot-rolled steel and features large stiffeners, ensuring a service life of over 25 years.
Efficient Light Source
The 20m/30m high mast flood light features a 1000W LED light source with a luminous efficacy of 150lm/W, providing uniform illumination over a large area.
Protective Design
The lampshade is constructed of tempered glass with a silicone seal and is IP66 rated, providing protection against rain and dust.

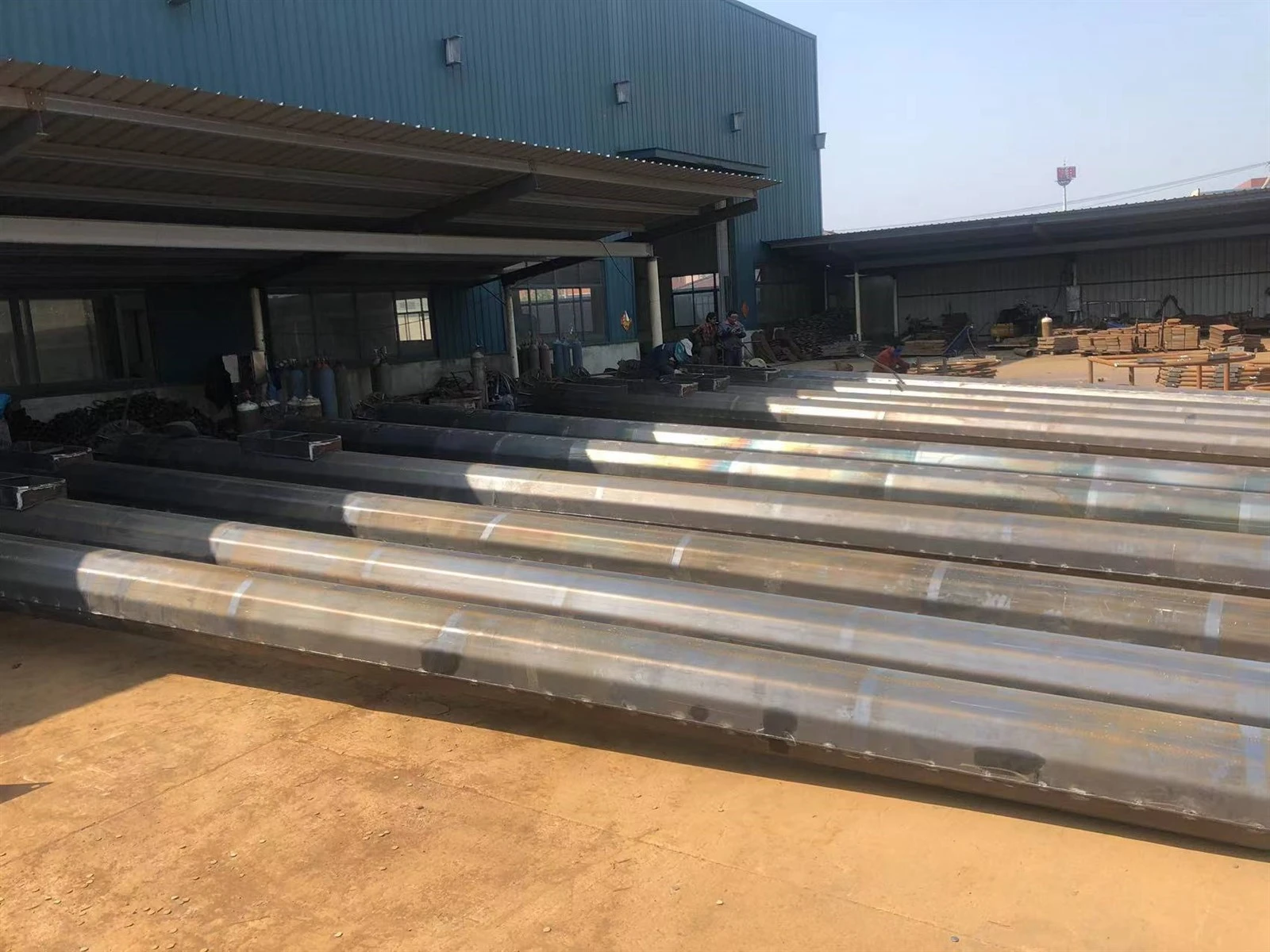

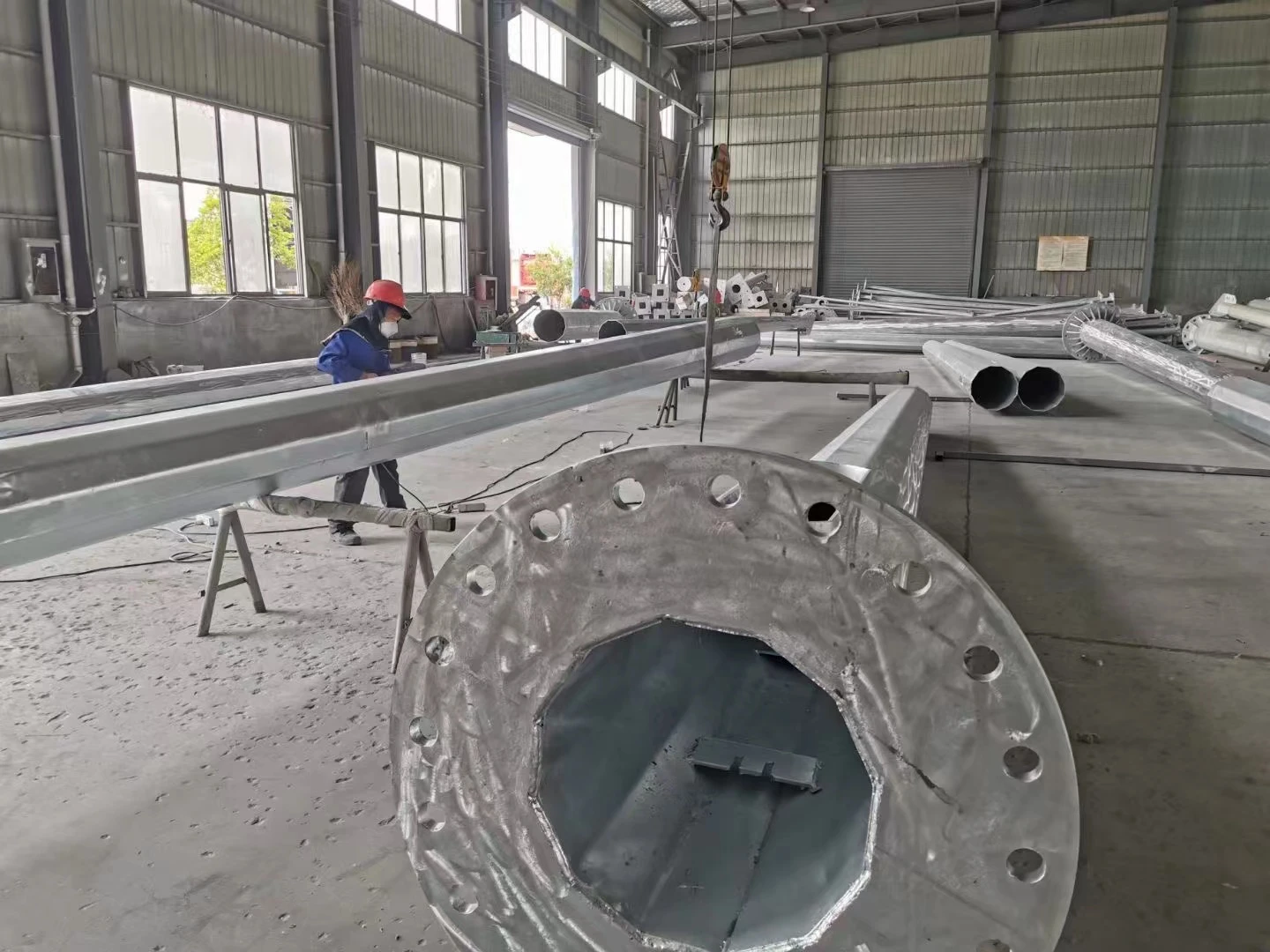

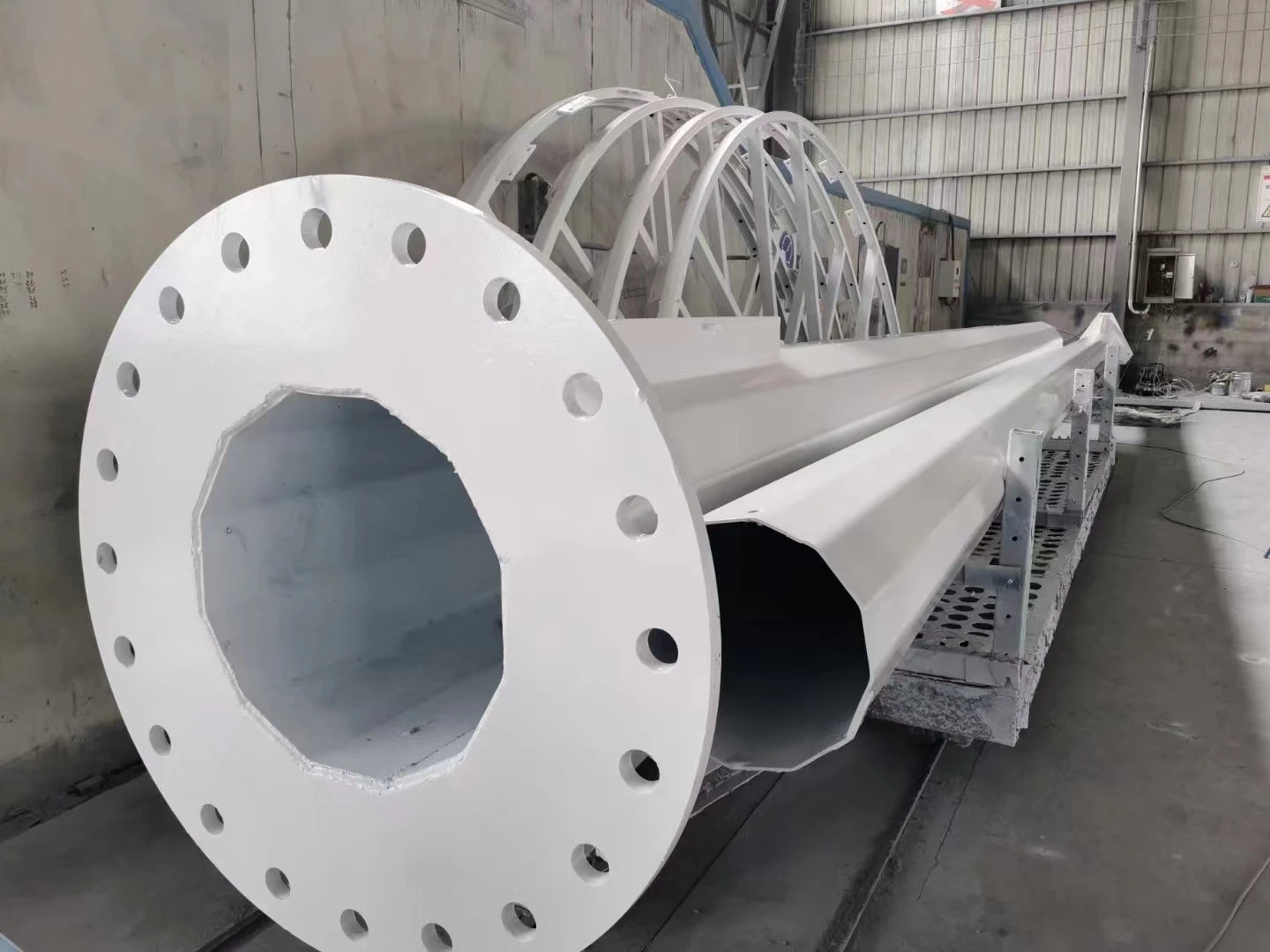

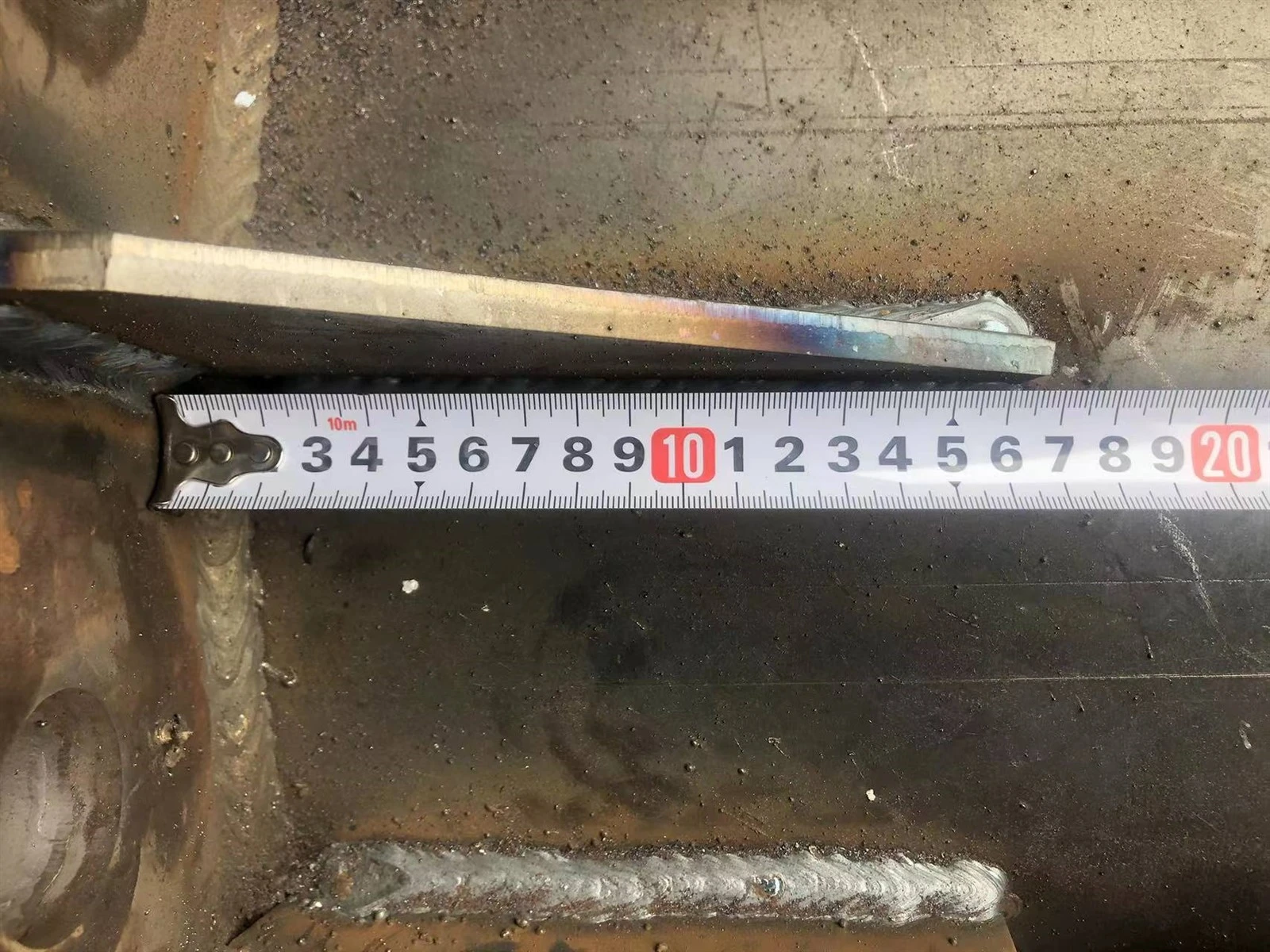

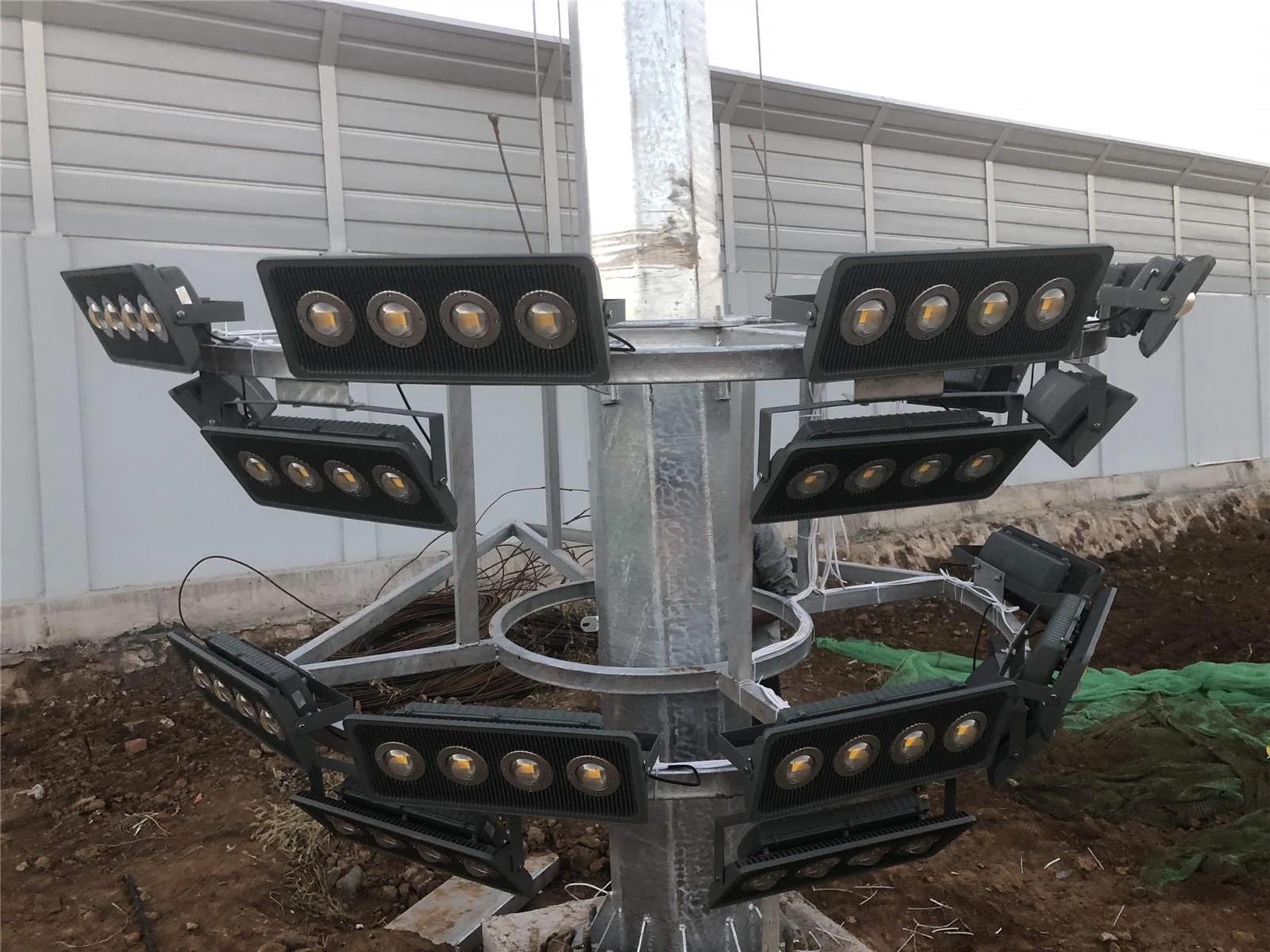

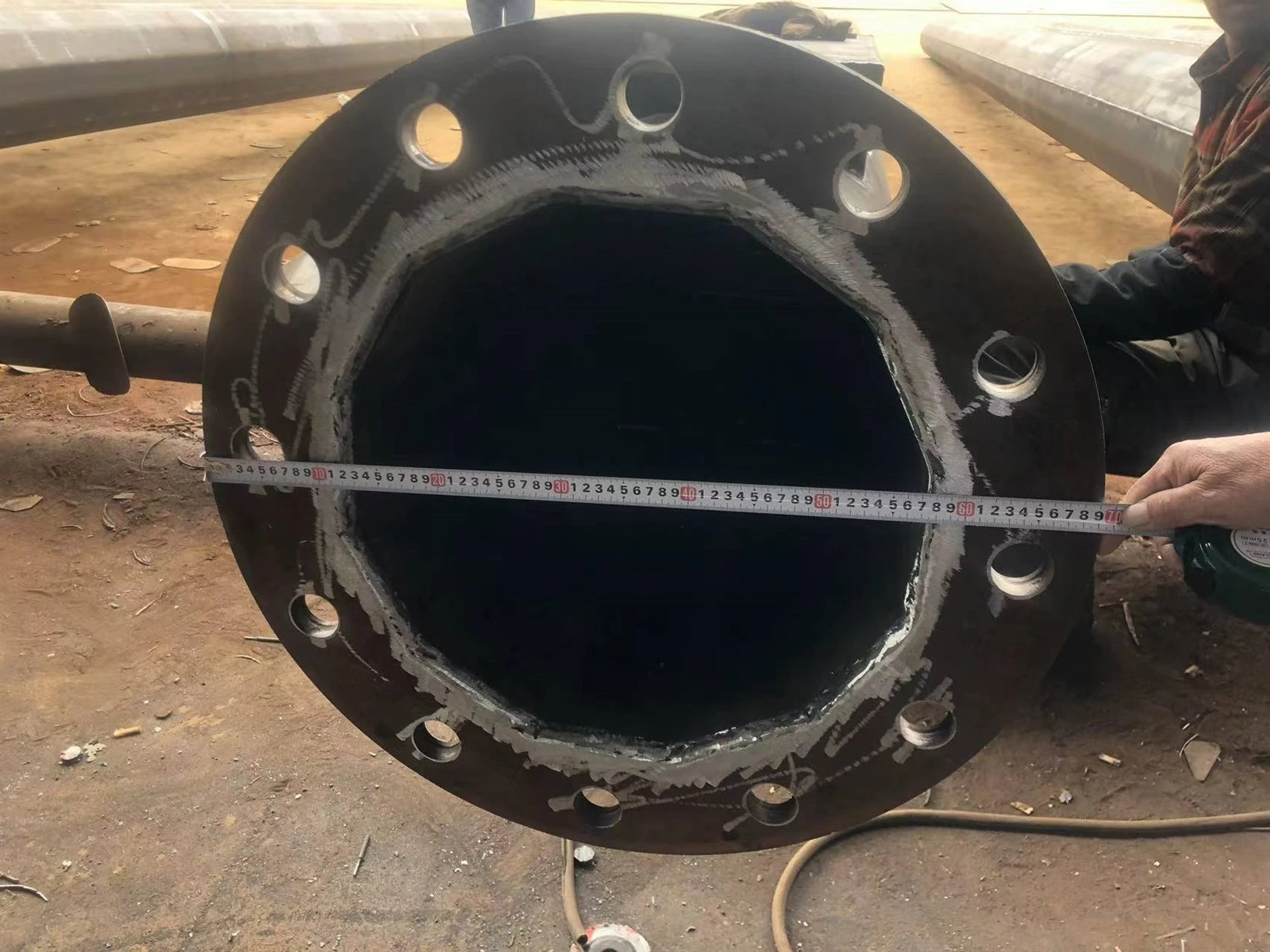

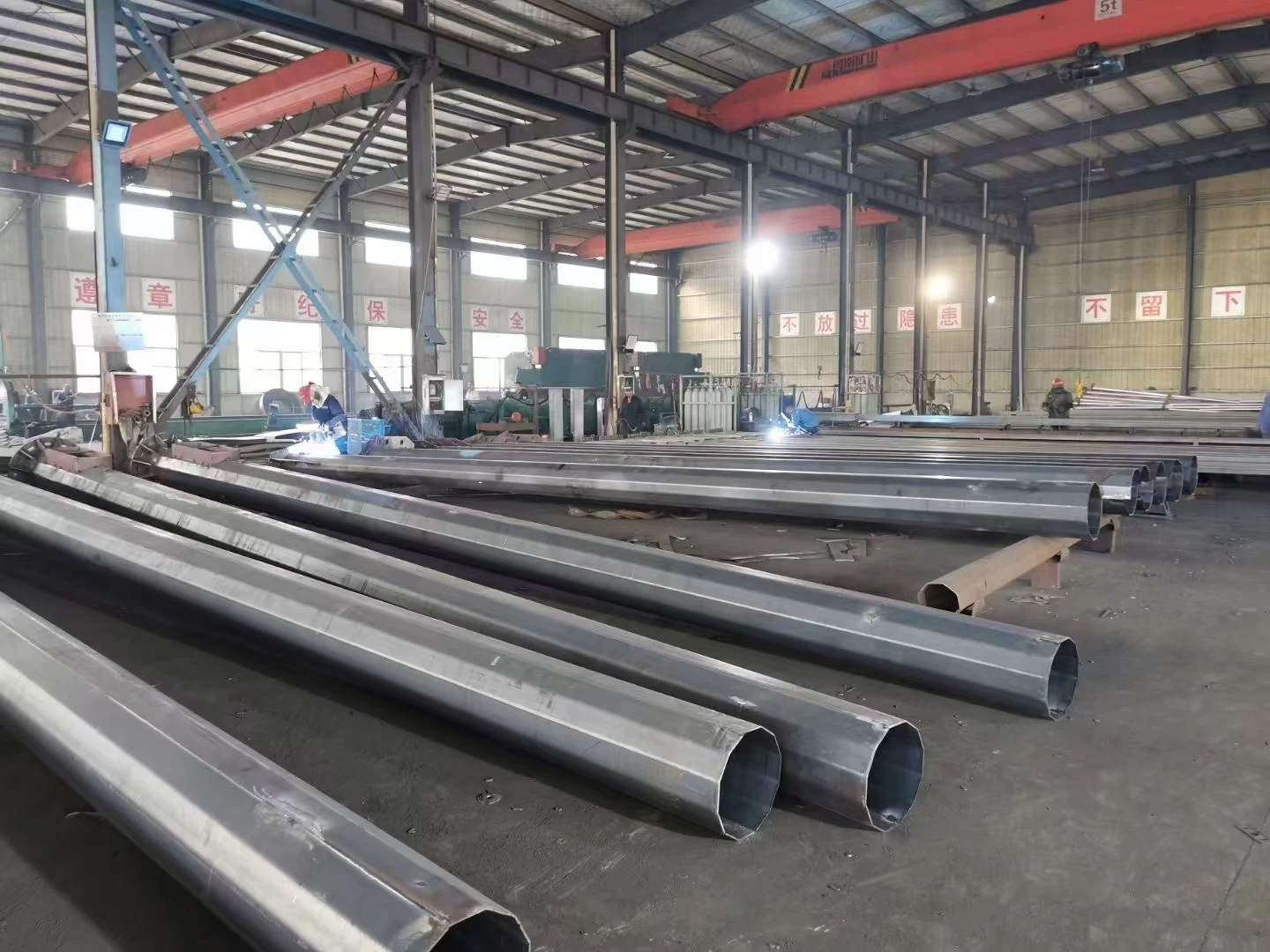

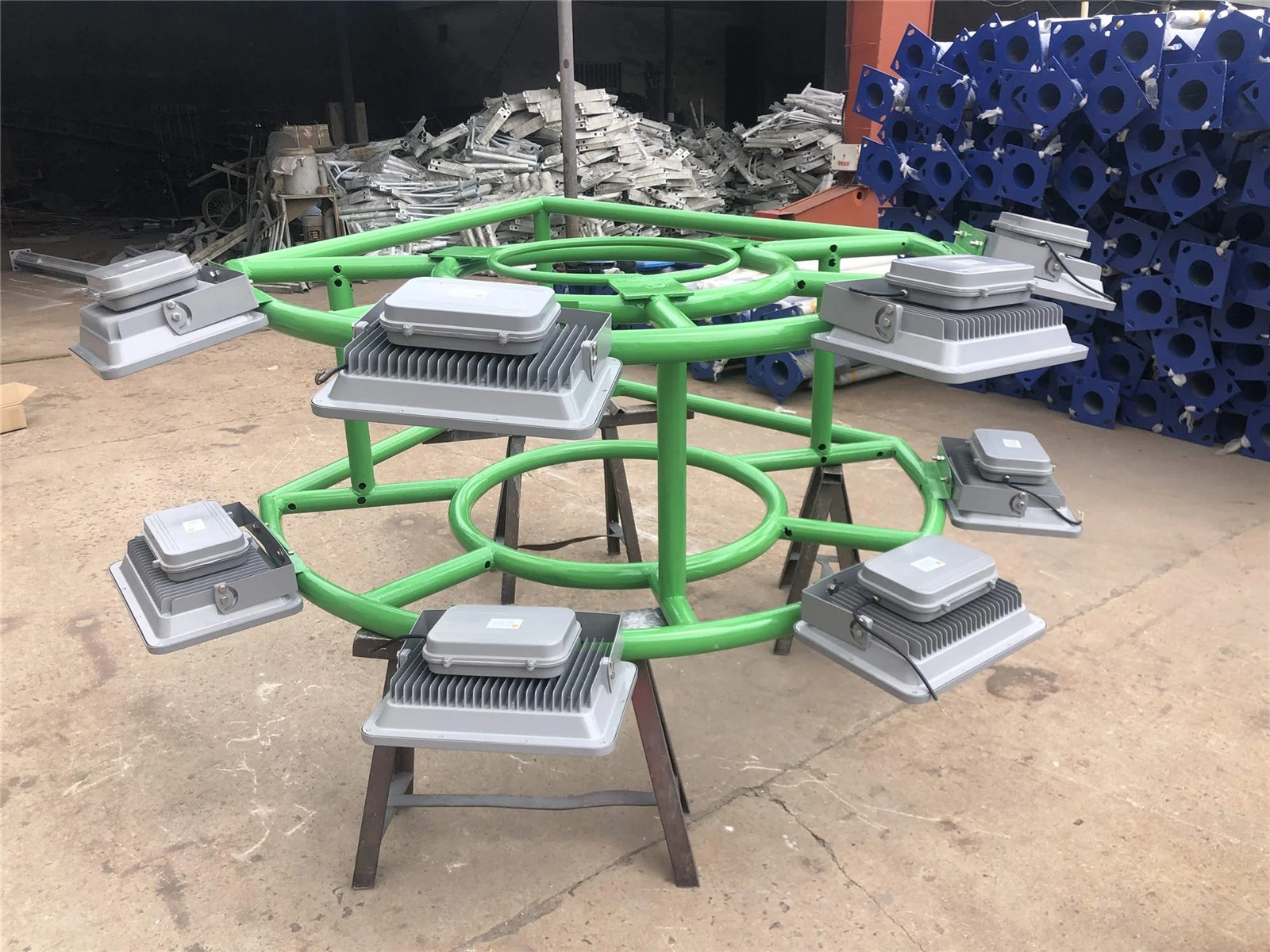

High mast pole Production details:

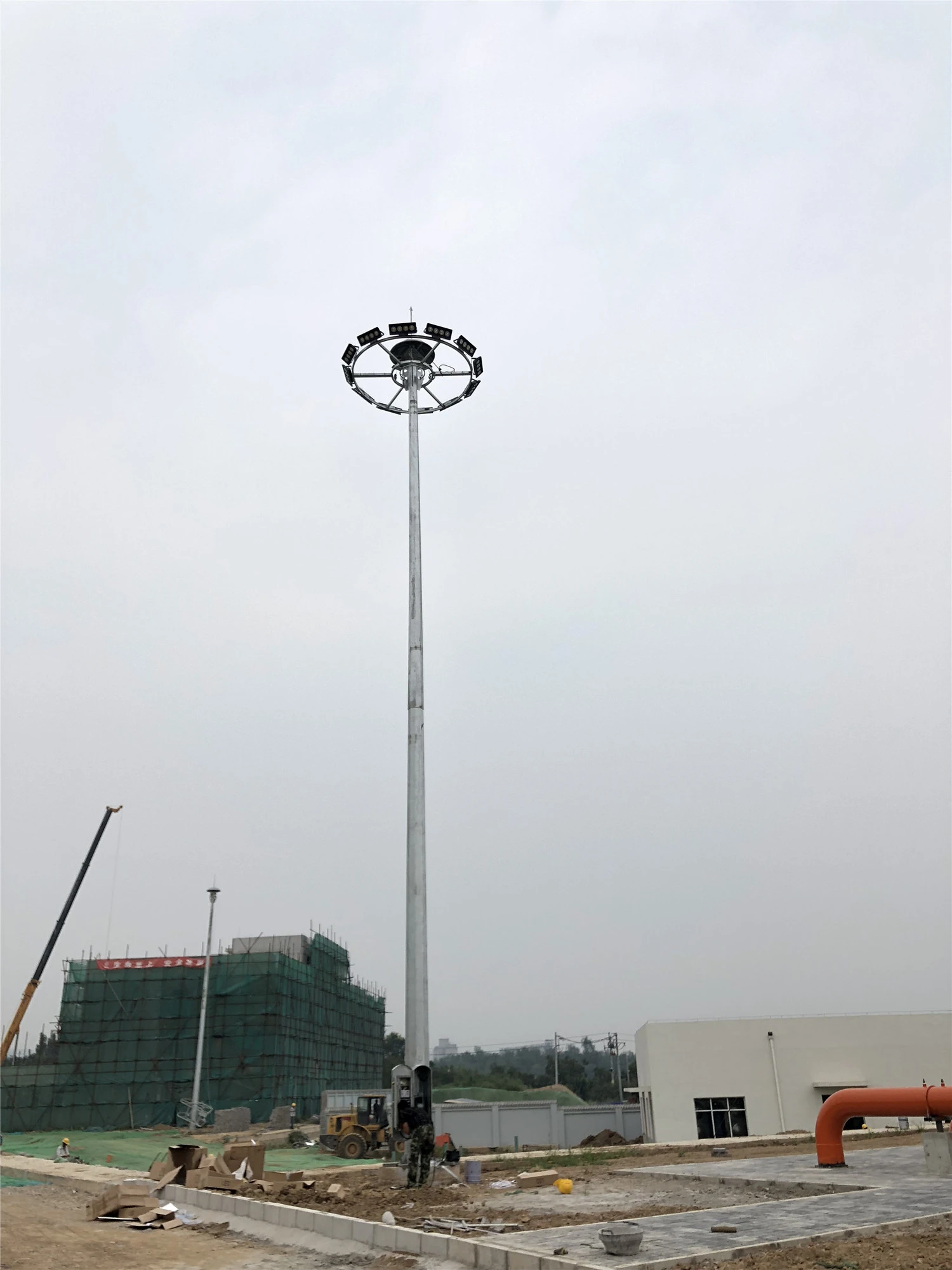

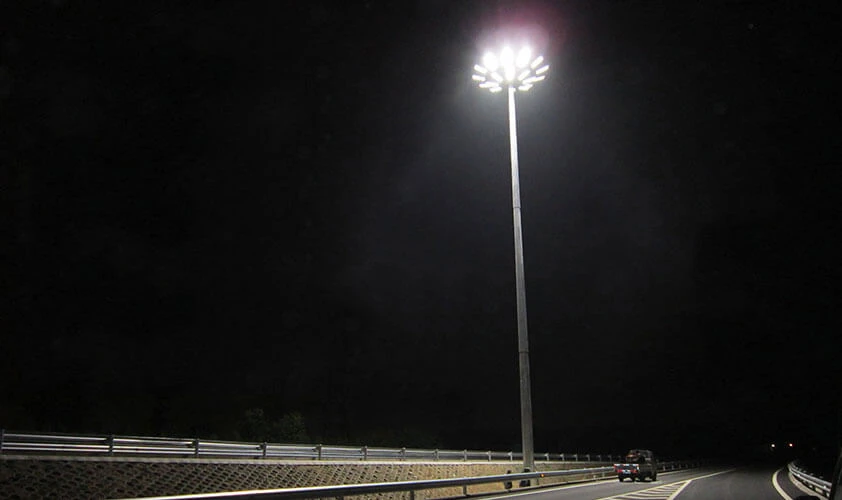

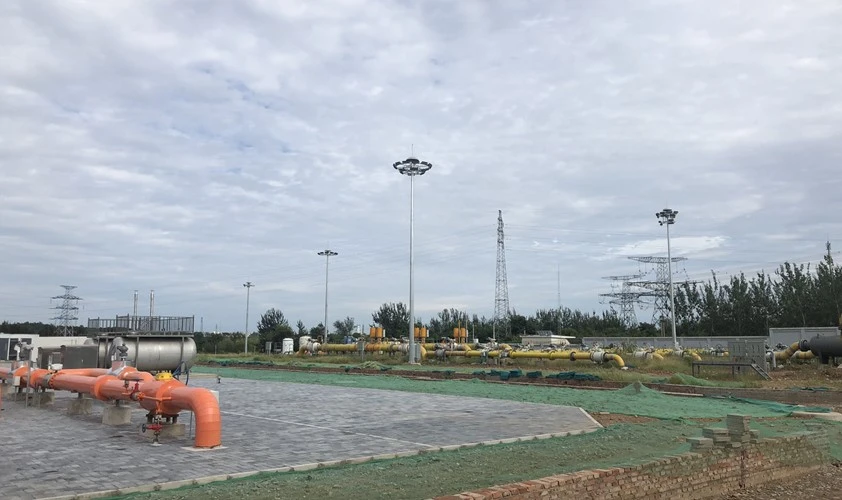

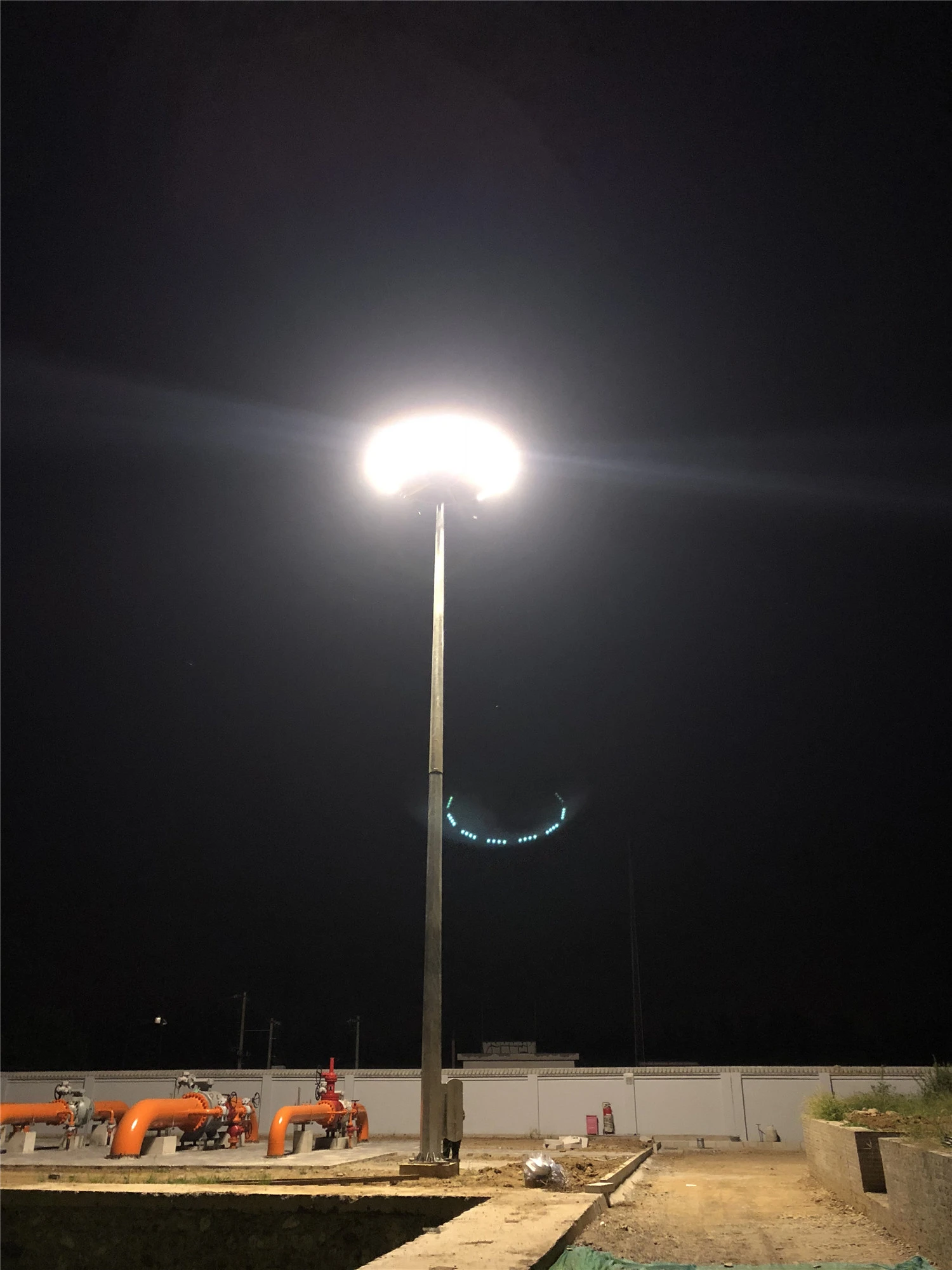

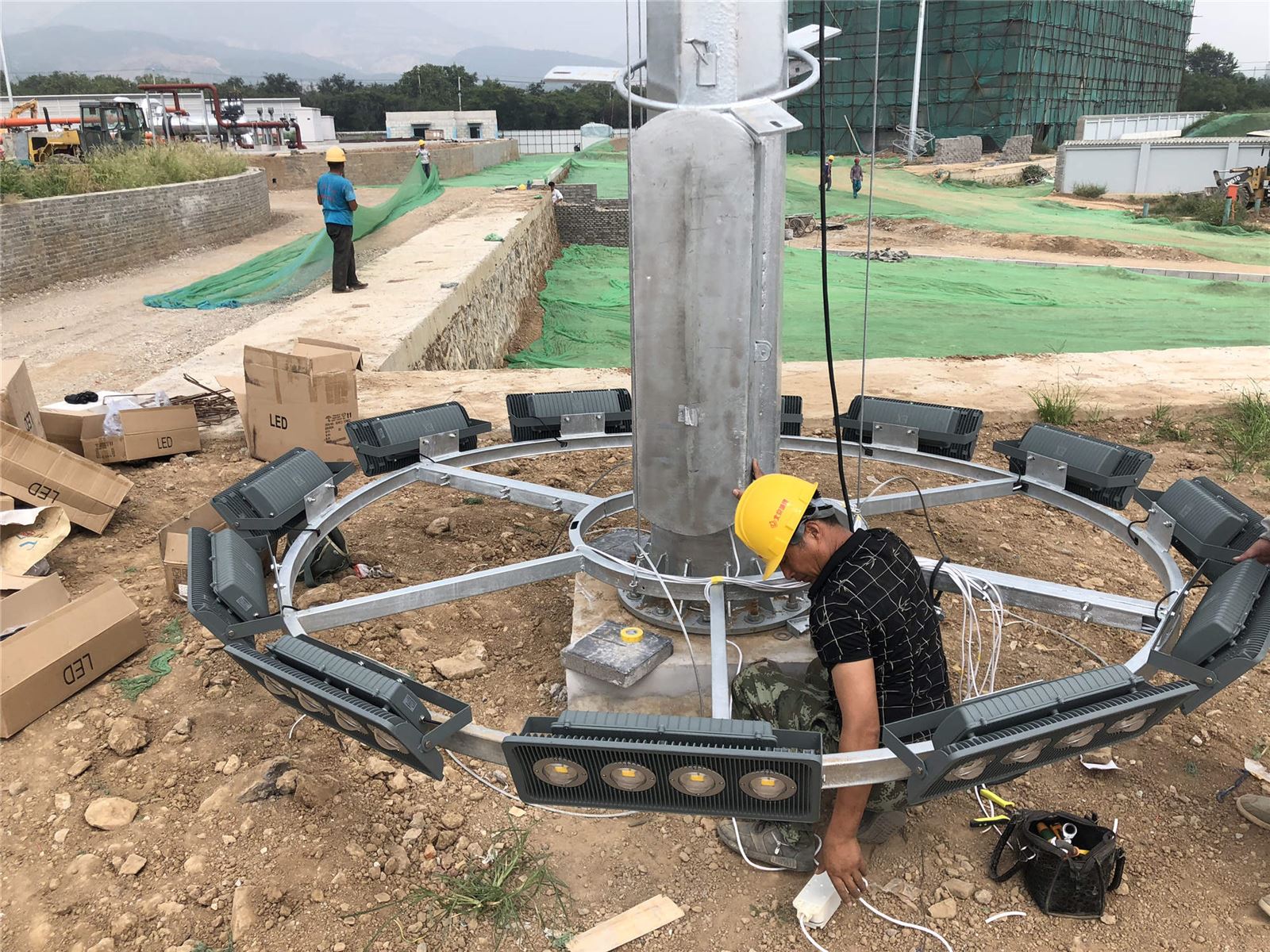

High mast pole light projects pictures:
Company Advantages
Global Service Network
We serve customers in over 86 countries and regions, providing professional design consulting, installation guidance, and after-sales support.
Advanced Production Capabilities
Our 6,300 square meter modern factory is staffed by over 100 skilled workers and over 10 senior engineers, enabling large-scale, high-quality production.
Multiple International Certifications
Our products are certified to ISO9001, ISO14001, ISO45001, CE, IEC, ROHS, TUV, and FCC.
Continuous Innovation and R&D
We possess over 50 patents and independent R&D capabilities, continuously optimizing our technology.
Frequently Asked Questions
Q: How does a 20m/30m high mast flood light work?
A: A high mast floodlight uses the light source of the lamp to illuminate the surrounding area. The lamp head can be adjusted in angle, and when used with a lift mast, it provides uniform illumination over a wide area.
Q: How does the mounting height of the lamp affect the lighting effect?
A: The higher the height, the wider the light coverage, but the light intensity decreases. Therefore, the appropriate height should be selected based on the site area and brightness requirements.
Q: What are the precautions for lamp cleaning and maintenance?
A: Turn off the power regularly and remove dust and stains with a soft cloth. Avoid using corrosive cleaners. Also, check the security of the lamp screws and brackets.
Q: What are the routine inspections for high mast lights?
A: Check the lamp fastening, lifting mechanism, light source, wiring, and foundation. Any abnormalities should be addressed promptly to ensure long-term stable operation.
Q: Are there any load-bearing requirements for the ground when installing a high mast light?
A: The installation site must have a stable foundation with sufficient load-bearing capacity to support the weight of the lamp pole to prevent sinking or tilting that could affect safety and lighting performance.
